MODEL:HXM158 |
||||||
| TECHNICAL PARAMETER TABLE | A | B | C | D | ||
| INJECTION UNIT
واحد تزریق |
SCREW DIAMETER قطر ماردون |
mm | 38 | 42 | 45 | 48 |
| SCREW L/D RATIO نسبت D/L ماردون |
L/D | 24.3 | 22 | 20.5 | 19.2 | |
| INJECTION CAPACITY IN THEORY حجم تزریق |
cm3 | 226 | 277 | 318 | 361 | |
| INJECTION WEIGHT(PS) وزن تزریق بر مبناي پلی استایرن |
g | 206 | 252 | 289 | 328 | |
| oz | 7.2 | 8.8 | 10.1 | 11.5 | ||
| INJECTION PRESSURE فشار تزریق |
MPa | 248 | 203 | 177 | 155 | |
| INJECTION RATE نرخ تزریق |
g/s | 100 | 126 | 144 | 163 | |
| PLASTICIZING CAPACITY | g/s | 13 | 15 | 20 | 24 | |
| SCREW SPEED سرعت ماردون |
rpm | 220 | ||||
| CLAMPING UNIT
واحد گیره |
CLAMPING FORCE نیروي گیره |
KN | 1580 | |||
| MOVING MOULD-PLATE STROKE کورس بازشو گیره |
mm | 400 | ||||
| MAX. MOULD HEIGHT بیشترین ارتفاع قالب |
mm | 500 | ||||
| MIN. MOULD HEIGHT کمترین ارتفاع قالب |
mm | 150 | ||||
| SPACE BETWEEN TIE-BARS (W×H) فاصله بین تایبارها |
mm | 460×410 | ||||
| HYDRAULIC EJECTOR FORCE نیروي پران |
mm | 53 | ||||
| HYDRAULIC EJECTOR STROKE کورس پران |
KN | 130 | ||||
| EJECTOR NUMBER تعداد میل پران |
n | 5 | ||||
| OTHERS
سایر |
PUMP PRESSURE حداکثر فشار پمپ |
MPa | 16 | |||
| MOTOR /DRIVING POWERتوان موتور پمپ |
KW | 15/18.5 | ||||
| HEATING CAPACITY توان المنت ها |
KW | 10.95 | ||||
| MACHINE DIMENSION (L×W×H) ابعاد دستگاه |
m | 5.0×1.23×1.975 | ||||
| MACHINE WEIGHT وزن دستگاه |
t | 4.3 | ||||
| OIL TANK CAPACITY ظرفیت مخزن روغن | L | 253 | ||||

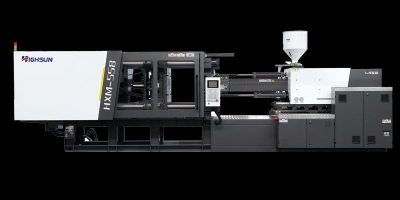

HXM158: HXM servo injection molding machine
High quality features
The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”,professional shape future !
Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.
Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.
