TECHNICAL PARAMETER TABLE |
|||
|
INJECTION UNIT |
SCREW DIAMETER قطر ماردون |
mm |
80 |
|
SCREW L/D RATIO نسبت D/L ماردون |
L/D |
19 |
|
|
INJECTION CAPACITY IN THEORY حجم تزریق |
cm3 |
1709 |
|
|
INJECTION WEIGHT(PS) وزن تزریق بر مبناي پلی استایرن
|
g |
1555 |
|
|
oz |
54.8 |
||
|
INJECTION PRESSURE فشار تزریق |
MPa |
131 |
|
|
INJECTION RATE نرخ تزریق |
g/s |
583 |
|
|
PLASTICIZING CAPACITY |
g/s |
80 |
|
|
SCREW SPEED سرعت ماردون |
rpm |
160 |
|
|
CLAMPING UNIT واحد گیره |
CLAMPING FORCE نیروي گیره |
KN |
3680 |
|
MOVING MOULD-PLATE STROKE کورس بازشو گیره |
mm |
710 |
|
|
MAX. MOULD HEIGHT بیشترین ارتفاع قالب |
mm |
750 |
|
|
MIN. MOULD HEIGHT کمترین ارتفاع قالب |
mm |
250 |
|
|
SPACE BWTWEEN TIE-BARS (W×H) فاصله بین تایبارها |
mm |
720×690 |
|
|
HYDRAULIC EJECTOR FORCE نیروي پران |
kn |
134 |
|
|
HYDRAULIC EJECTOR STROKE کورس پران |
mm |
180 |
|
|
|
Ejector number تعداد میل پران |
n |
13 |
|
OTHERS سایر |
PUMP PRESSURE حداکثر فشار پمپ |
MPa |
17.5 |
|
MOTOR /DRIVING POWER توان موتور پمپ |
KW |
40 |
|
|
HEATING CAPACITY توان المنت ها |
KW |
25 |
|
|
MACHINE DIMENSION (L×W×H) ابعاد دستگاه |
m |
7.4×1.99×2.24 |
|
|
MACHINE WEIGHT وزن دستگاه |
t |
11.5 |
|
|
OIL TANK CAPACITY ظرفیت مخزن روغن |
L |
680 |
|

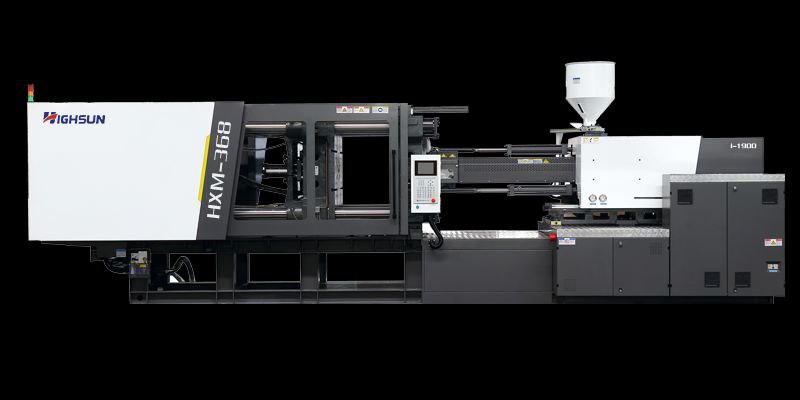

HXM368-G: HXM optimized edition for crate/painting bucket
Optimized feature:
1.Enlarged motor & pump system, optimized hydraulic system to satisify high-performance with quicker cycle. Like crate(less than 2kg) cycle time20S;
paiting bucket(780-800g) cycle time 20S.
2.Specially designed screw and barrel with structure of quicker plasticization, shorten the material charging cycle.
Optional with bi-metal screw and barrel to compatible with recycling material for crate.
3.Optional with automatic facilities to improve the production efficieny.
