TECHNICAL PARAMETER TABLE |
A |
B |
||
|
INJECTION UNIT |
SCREW DIAMETER |
mm |
85 |
90 |
|
SCREW L/D RATIO |
L/D |
22 |
21 |
|
|
INJECTION CAPACITY IN THEORY |
cm3 |
2496 |
2799 |
|
|
INJECTION WEIGHT(PS) |
g |
2272 |
2547 |
|
|
oz |
80.1 |
89.9 |
||
|
INJECTION PRESSURE |
MPa |
225 |
200 |
|
|
INJECTION RATE |
g/s |
496 |
556 |
|
|
PLASTICIZING CAPACITY |
g/s |
70 |
80 |
|
|
SCREW SPEED |
rpm |
145 |
||
|
CLAMPING UNIT |
CLAMPING FORCE |
KN |
7300 |
|
|
MOVING MOULD-PLATE STROKE |
mm |
950 |
||
|
MAX. MOULD HEIGHT |
mm |
960 |
||
|
MIN. MOULD HEIGHT |
mm |
400 |
||
|
SPACE BWTWEEN TIE-BARS (W×H) |
mm |
1000x950 |
||
|
HYDRAULIC EJECTOR FORCE |
KN |
227 |
||
|
HYDRAULIC EJECTOR STROKE |
mm |
280 |
||
|
EJECTOR NUMBER |
n |
17 |
||
|
OTHERS |
PUMP PRESSURE |
MPa |
17.5 |
|
|
MOTOR POWER |
KW |
38+38 |
||
|
HEATING CAPACITY |
KW |
42 |
||
|
MACHINE DIMENSION (L×W×H) |
m |
9.67x2.45x2.95 |
||
|
MACHINE WEIGHT |
t |
33 |
||
|
OIL TANK CAPACITY |
L |
1136 |
||

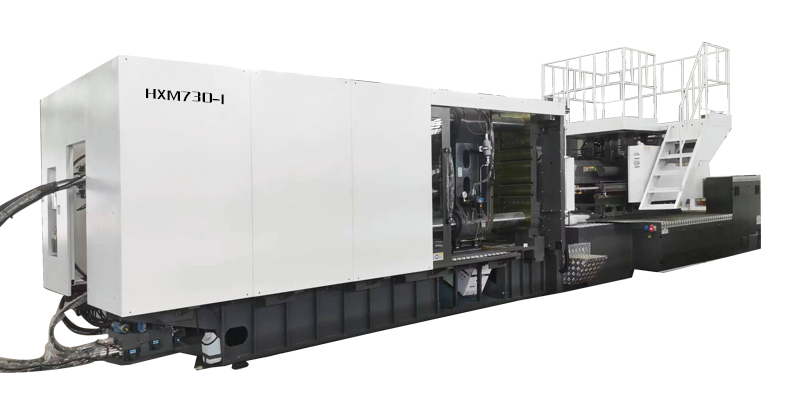

HXM730-I: HXM servo injection molding machine
High quality features
The “new breakthrough” of the hydraulic injection molding machine has realized “pressure valve ring control” and “energy supply and demand matching”, professional shape future !
Pressure valve ring control: The actual pressure is compared with the set pressure in real time and corrected until the actual pressure is equal to the set pressure.
Matching energy supply and demand: How much energy does the injection molding machine do, how much energy the power system provides, and very little energy loss.
